FlashBack-3C

With i-Conex connectors for easy installation

The FlashBack-3C is a version of the FlashBack-3 range of DVR / streamers with miniature colour coded connectors for easy installation.

FlashBack-3C Single & Dual DVR video streamer FlashBack-3C Single & Dual DVR video streamer

Each system is provided with i-Conex miniature connectors, the  inter-connection and cabling system from Ovation Systems. i-Conex can interface to either bare wires or commonly used video, audio and DC power connectors. To aid deployment, it’s a simple operation to extend any cable with the in-line 0.5 or 1 metre extension cables included with each system.

There are also a number of special accessories available using the connector system including a GPS receiver, Knowles microphones and a miniature low-light bullet camera.

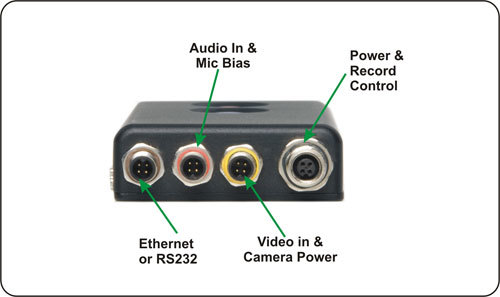

FlashBack-3C Single Rear View FlashBack-3C Single Rear View

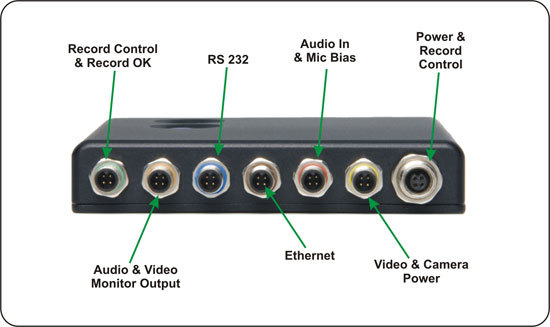

FlashBack-3C Dual Rear View FlashBack-3C Dual Rear View

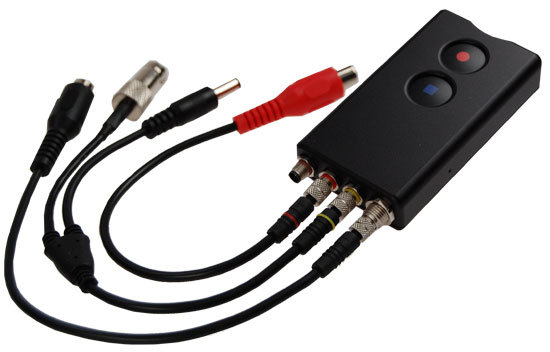

Example of FlashBack-3C with the i-Conex Connection System Example of FlashBack-3C with the i-Conex Connection System

i-Conex cable set and optional extras available

Product Codes

Product Codes Description
FB3C-5546FlashBack-3C Connector SINGLE SD card PAL miniature H.264 video recorder with accessories and 1GB SD card.
FB3C-5547FlashBack-3C Connector SINGLE SD card NTSC miniature H.264 video recorder with accessories and 1GB SD card.
FB3C-5548FlashBack-3C Connector Single SD card PAL miniature H.264 video recorder with accessories and no SD card.
FB3C-5549FlashBack-3C Connector Single SD card NTSC miniature H.264 video recorder with accessories and no SD card.
FB3C-5552FlashBack-3C Connector DUAL SD card PAL miniature H.264 video recorder with accessories and 2 x 1GB SD card.
FB3C-5553FlashBack-3C Connector DUAL SD card NTSC miniature H.264 video recorder with accessories and 2 x 1GB SD card.
FB3C-5554FlashBack-3C Connector DUAL SD card PAL miniature H.264 video recorder with accessories and no SD card.
FB3C-5555FlashBack-3C Connector DUAL SD card NTSC miniature H.264 video recorder with accessories and no SD cards.

Due to continual product development Ovation Systems reserve the right to change specifications without notice. E&OE.

Our Products

Downloads

Features

  • FlashBack-3 DVR streamer with miniature connectors.
  • Mating cable sets included for the FlashBack-3 Single and Dual
  • Interfaces to commonly used video, audio and power connectors.
  • Easy to install in-line extension cables.
  • Retains all the key interfaces of the standard system.
